HVLS Fan Drive Vfd Inverter 2.2kw 380v Industry Specific Converter High Air Volume Ac Controller

Informação Básica

Place of Origin:	Shanghai, China
Marca:	ZONCN
Certificação:	CE
Model Number:	T100T-2R2G-4

Minimum Order Quantity:	1 unit
Packaging Details:	Carton Packing
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union，Paypal
Supply Ability:	100000 units per month

Melhor preço contacto

Protection function:	Power-on motor short-circuit detection, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, overload protection, etc.	Communication methods support:	RS485
Control method:	Open-loop vector control (without PG)	Time control:	Set the time range from 0.0 minutes to 6500.0 minutes.
IP level:	IP20	Torque increase:	Automatic torque increase; Manual torque increase ranging from 0.1% to 30.0%

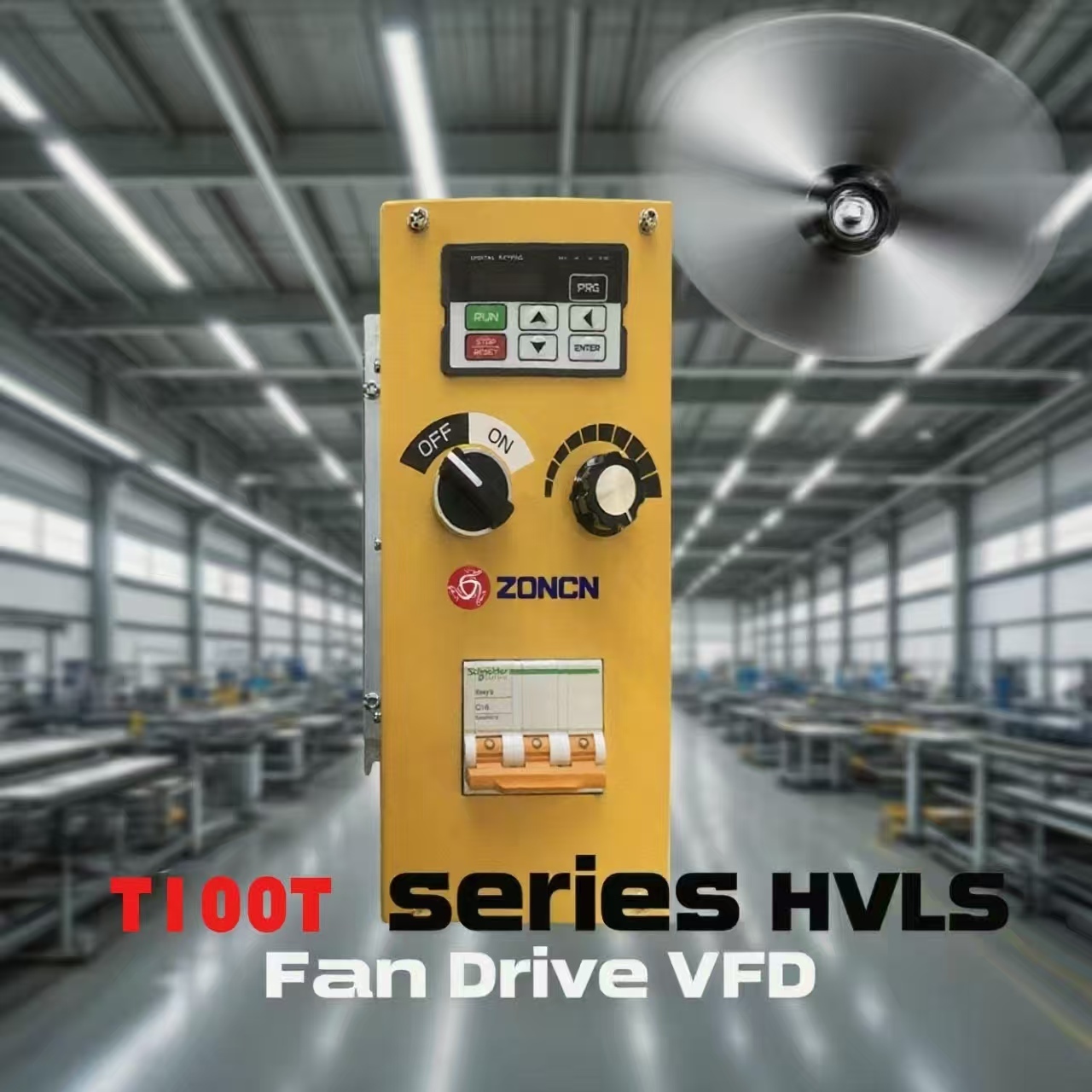

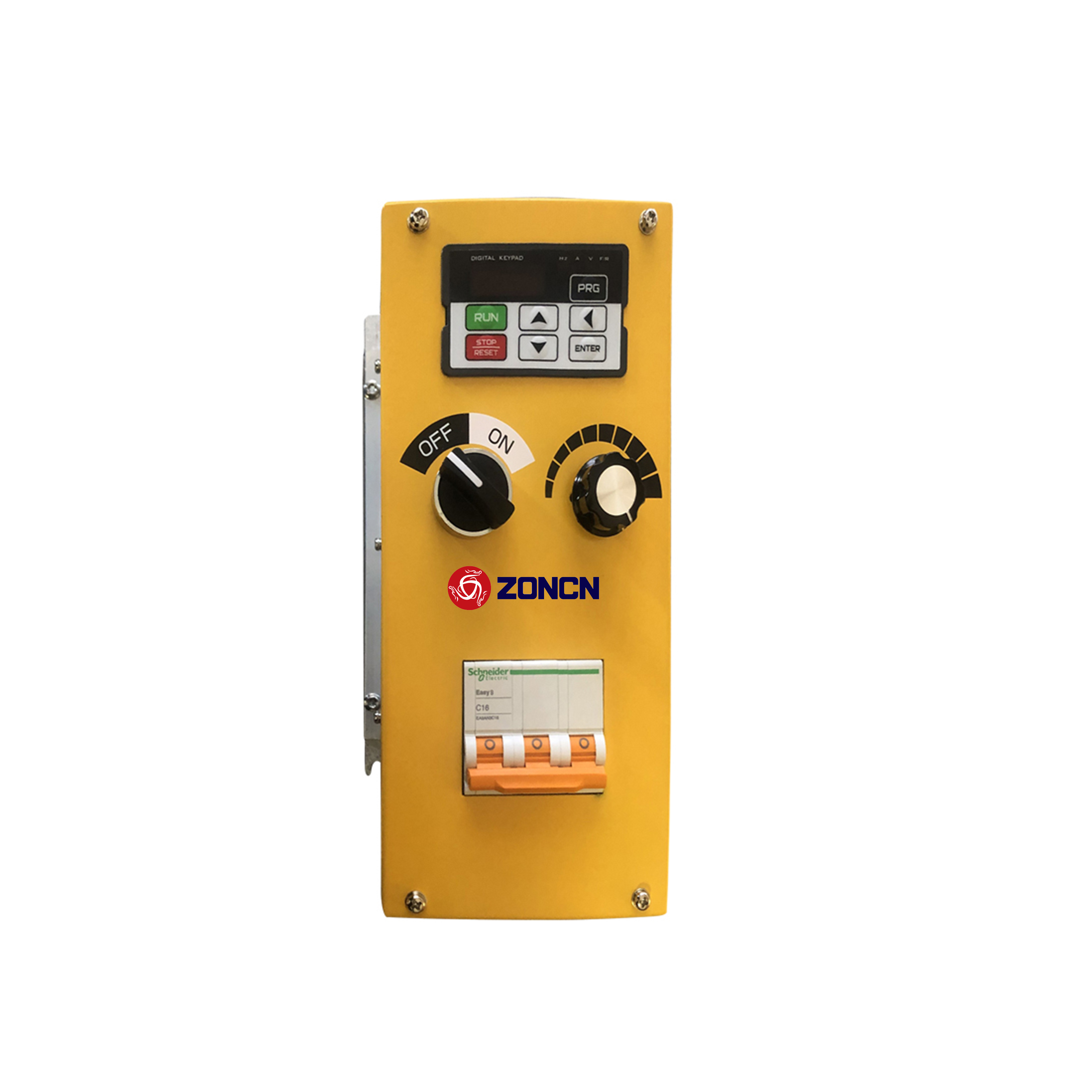

T100T series HVLS fan Drives VFD

Product model specification:

- Multi-function, smooth start, ultra-quiet, small size, easy operation, energy saving and other advantages
- High carrier design, up to 12k
- Integration of drive and peripheral electrical equipment; flexible and compact; eliminating cabinet.
- Integrated VFD, rotary switch, digital potentiometer and start button. No need for manual assembly, wiring and use.
- Have a variety of protection mechanisms to deal with external accidents.

VFD Model	Input voltage	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Matching motor (kilowatts)
T100-0R75G-2	220v 1ph	0.75	7.2	3.8	0.75
T100-1R5G-2		1.5	10	5.1	1.5
T100-2R2G-2		2.2	16	9.0	2.2
T100-0R75G-4	380v 3ph	0.75	3.8	2.1	0.75
T100-1R5G-4		1.5	5	3.8	1.5
T100-2R2G-4		2.2	5.8	5.1	2.2

Product application:

● Industrial fans

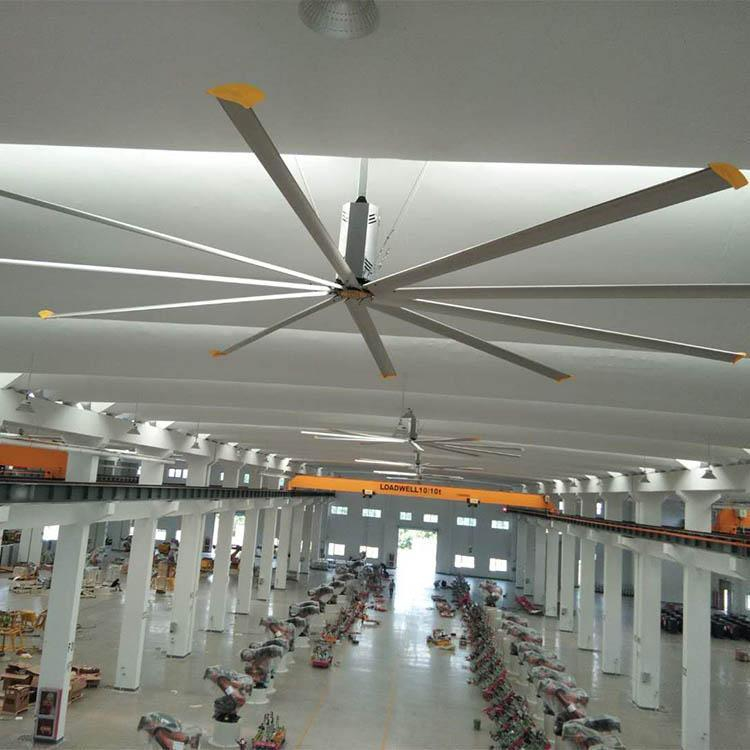

● HVLS fan
● Permanent-magnet synchronous motor

High-performance vector control, adopts international leading field-oriented vector control technology, operates permanent-magnet synchronous motor control. According to the characteristics of industrial fans, the parameters are specially optimized, and perfect low-speed response.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery. If the quantity of goods is large, we will accept a 30% advance payment before shipment.

Q3:What's your delivery time?
A:Generally within 10-15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
