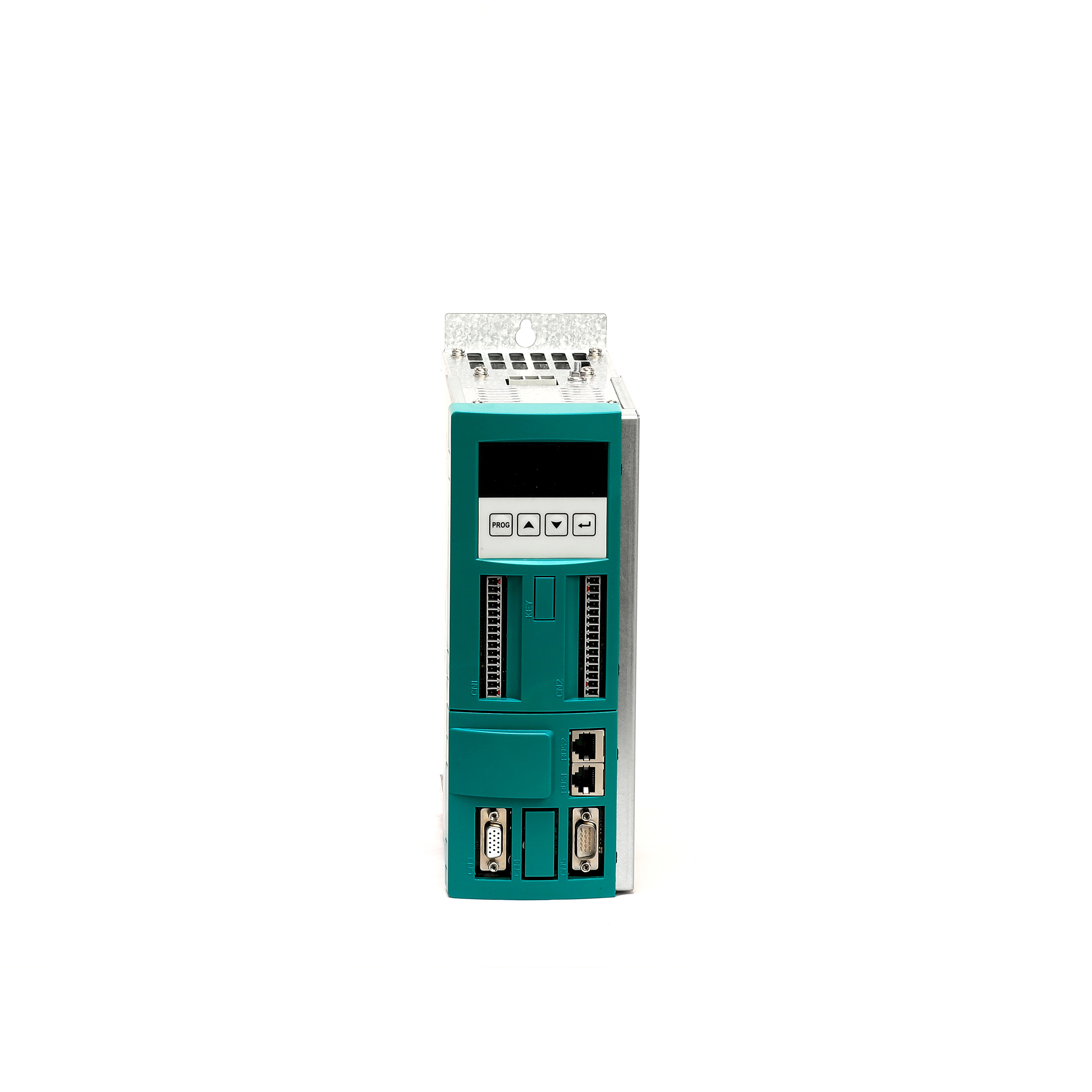

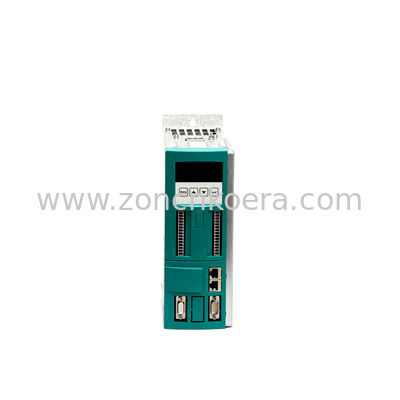

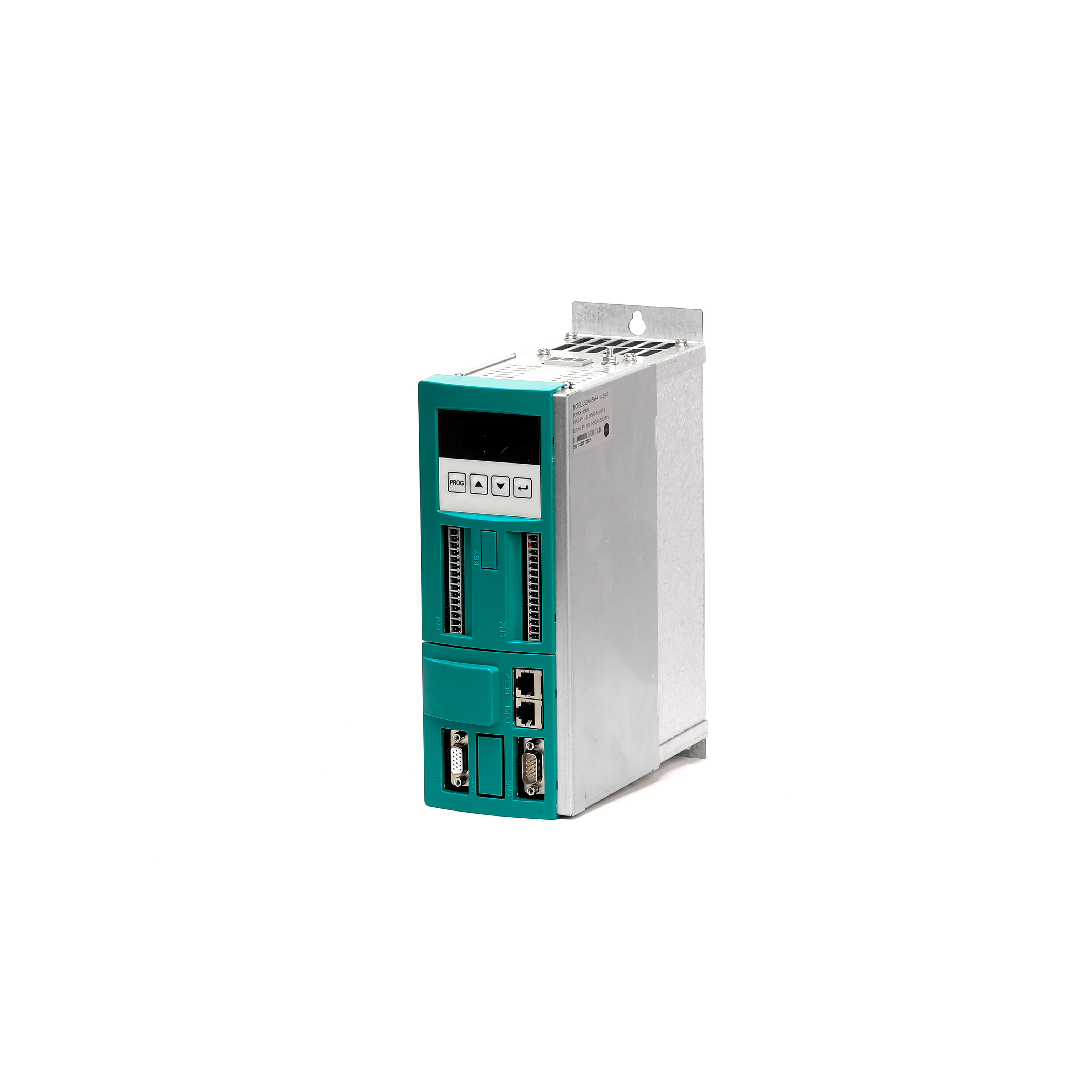

High Precision T8000D Series 380V Three Phase AC Spindle Servo Drive Inverter

Product introduction:

Unique features:

1:It has new functions like positioning control, pulse synchronous control and so on. It supports close loop control towards the spindle motor with encoder. This drive has high respoonding ability towards speed as well as smooth speed.

2:Multi encoder support with T8000D series drive: it can support differential encoder like ABZ encoder; resolver encoder and so on.

3:Overvoltage and overcurrent stall control: the system limits the output current and voltage automatically during operation to prevent frequent or excessive trips.

4:Onboard multiple preset position: the system implements up to 16 position by using simple PLC function or by using digital input signals.

5:Torque limit and control: the system limits the torque automatically to prevent frequent overcurrent tripping during operation. Torque control is applied in vector control.

6:Power dip ride-through, load feedback energy compensates for any voltage reduction, allowing the drive to continue to operate for a short time during power drops.

7:The purpose-designed asynchronous servo axis optimized for asynchronous geared motors. Practical spectrum of functionalities for modern positioning and control drives.

Product specification:

T8000D vfd applications:

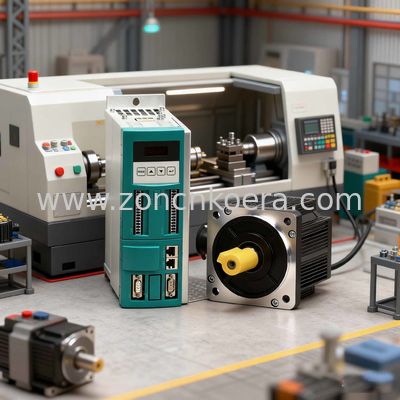

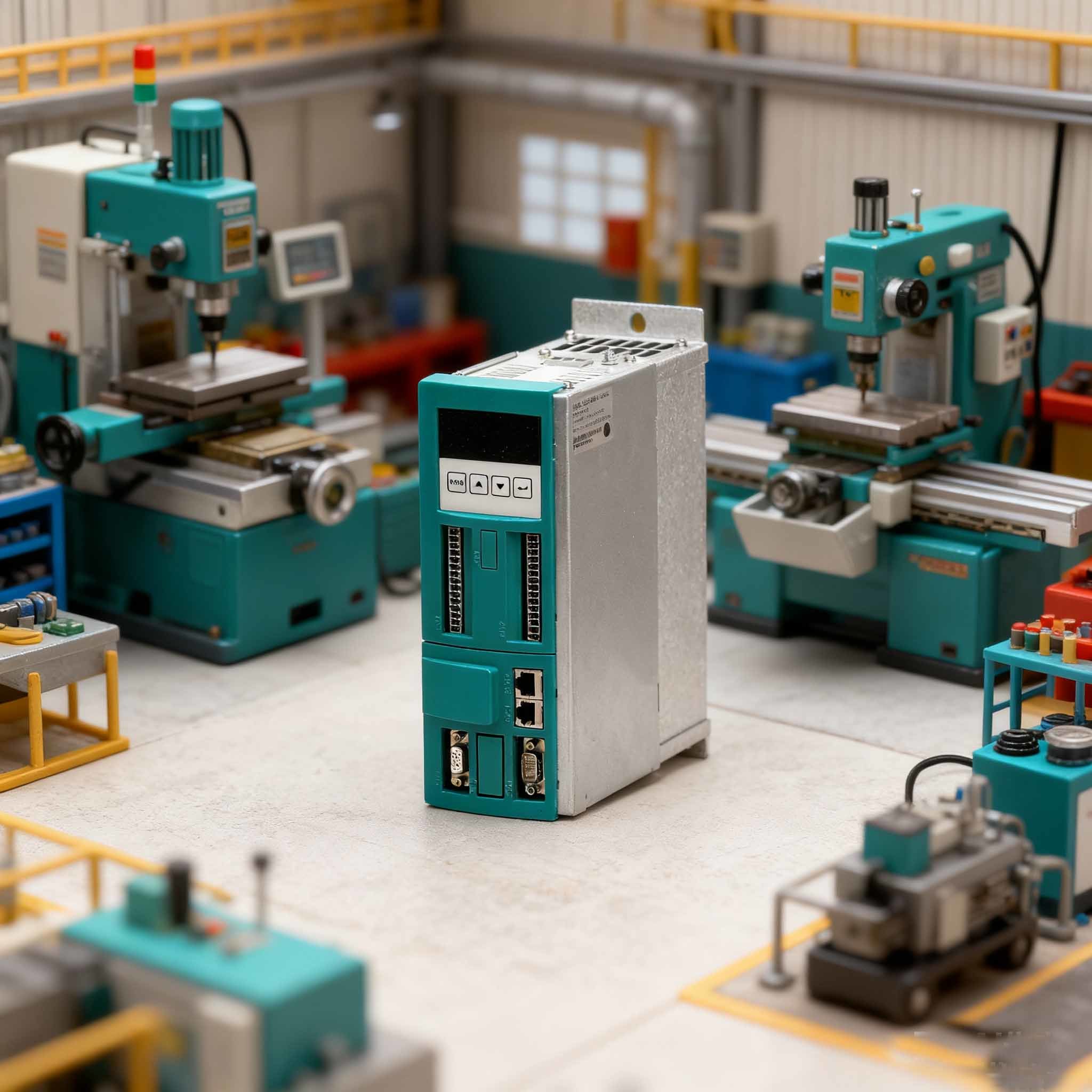

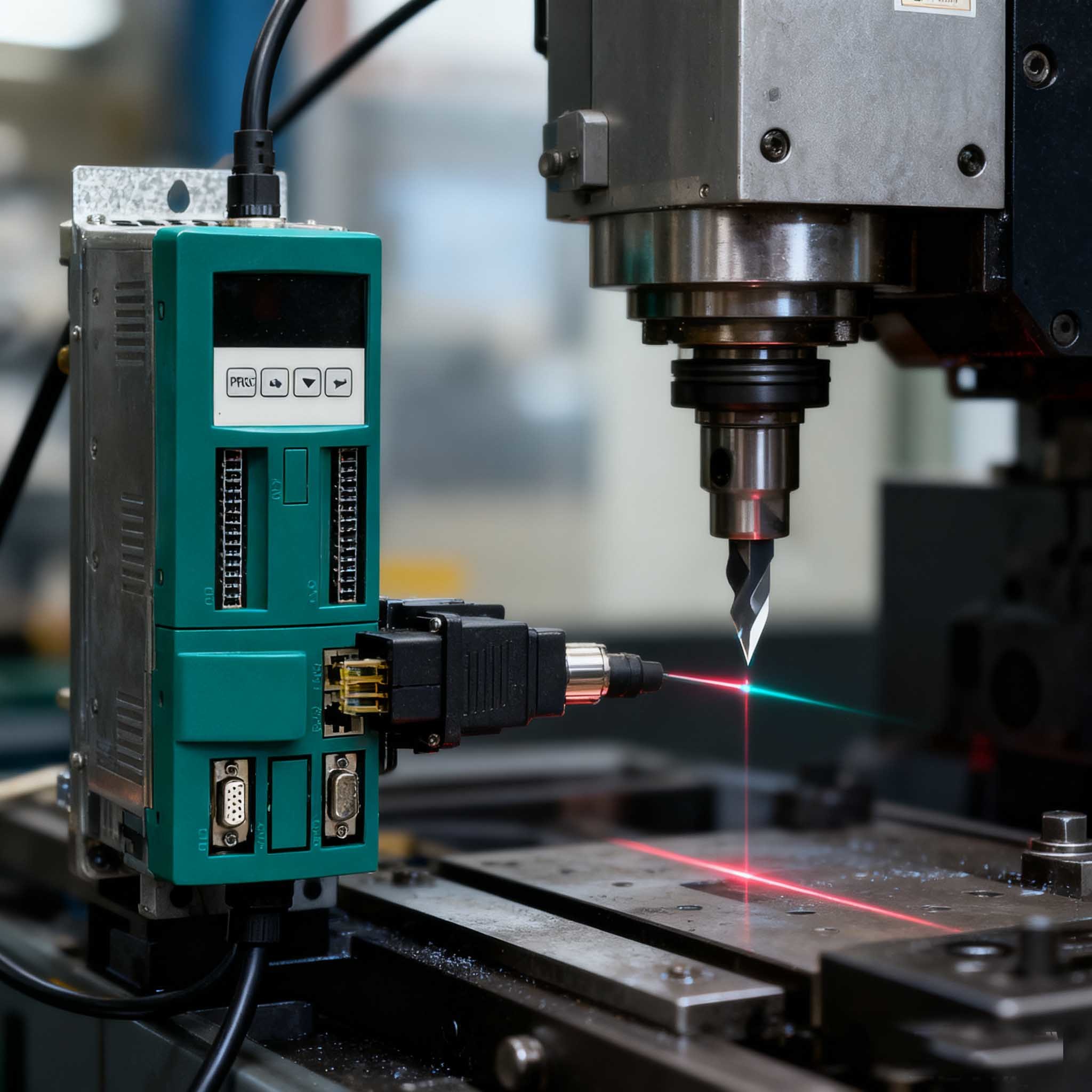

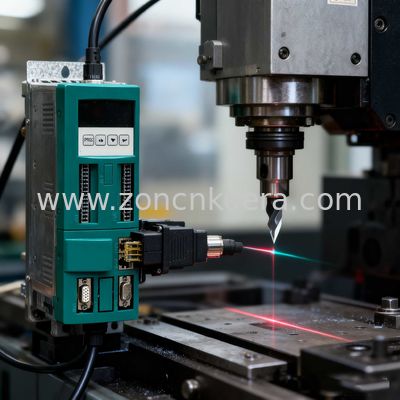

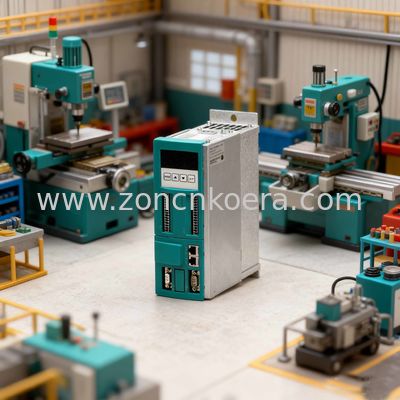

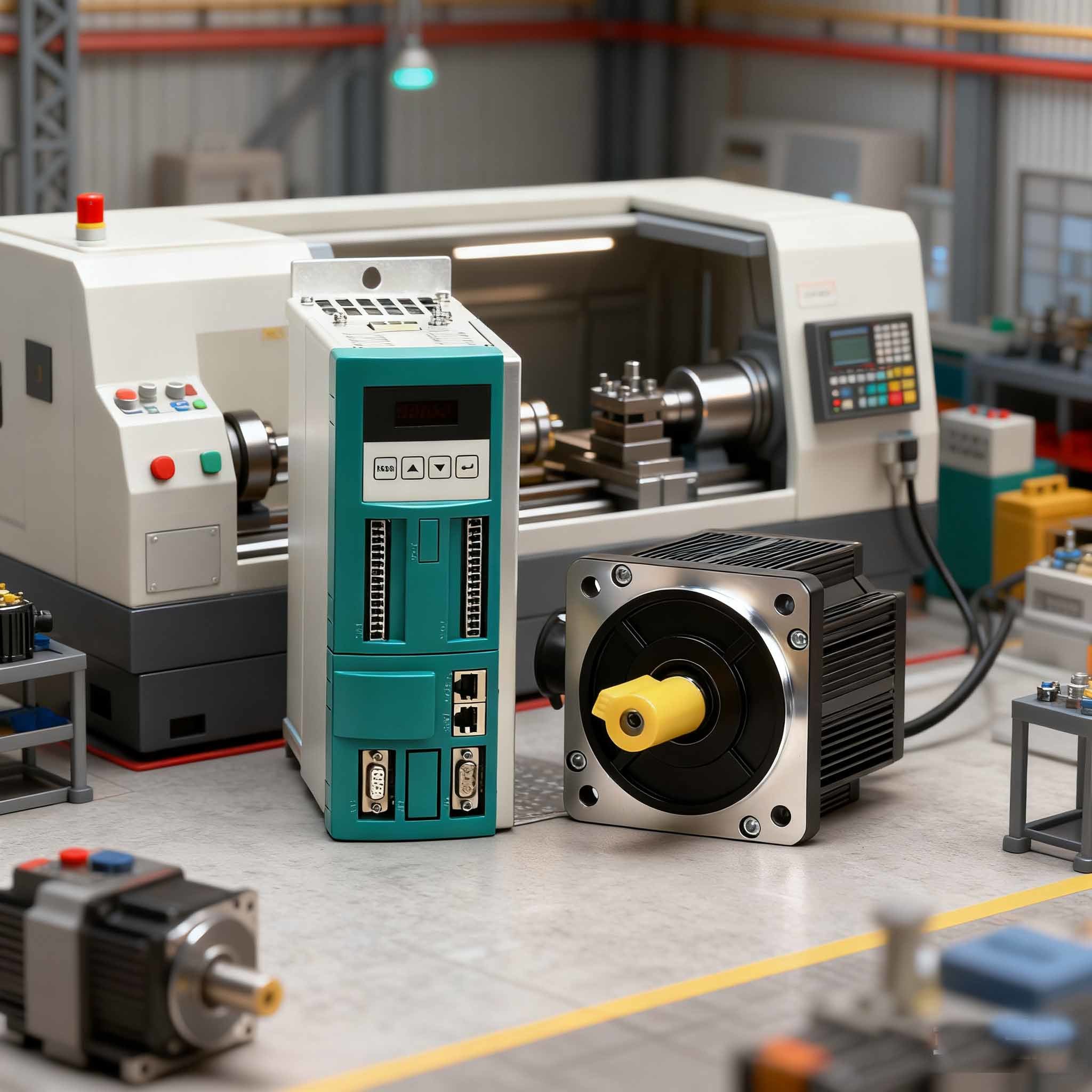

1:Numerically-controlled machine tool:The high-precision machining of CNC machine tools (such as tool changing, tapping, and indexing) relies on the precise positioning of the spindle. Meanwhile, precise positioning requires "real-time position feedback + precise speed control" — both of these capabilities can only be provided by frequency converters with positioning function and cannot be replaced by ordinary frequency converters. Therefore, the ZONCN T8000D series is highly suitable.
